Neodymium Female Thread Pot Magnet - 60mm dia. (113kg)

Product code: PMYP-D60

$88.65for 1 to 9 items
$67.60buy 10 to 49 itemsand save 23%
$60.74buy 50+ itemsand save 31%

Prices are GST Incl.

Volume pricing available on request

Neodymium Female Thread Pot Magnet - 60mm dia. (113kg)

Product Code PMYP-D60
Pull Force* 113kg
Weight 0.9kg
Coating Nickel (Ni)
Direction of Magnetisation Through Height
Dimensions Height:30.00mm, Outside Diameter:60.00mm
*Measured against up to 10mm mild steel.

Quantity: 1 piece of magnet only

Product Description:

Magnetic holders are used for attaching a variety of metal items.

The product consists of a small metal cup containing a neodymium rare earth magnet with female thread

Just attach the magnet to the metal surface

Organise your tools in a safe and secure manner

Ideal for holding kitchen utensils, gardening, mechanical and handyperson tools

Secures metal objects in place with easy removal or replacement

Easy to install, easy to use practical magnetic product

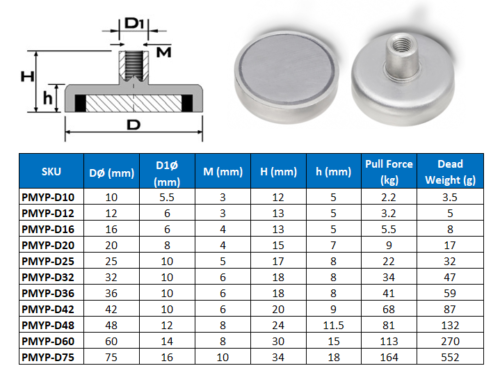

Product Specs:

Sku No. D1Ø M H h Holding force(kg) Weight (g)
PMYP-D10 10 5.5 3 12 5 2.2 3.5
PMYP-D12 12 6 3 13 5 3.2 5
PMYP-D16 16 6 4 13 5 5.5 8
PMYP-D20 20 8 4 15 7 9 17
PMYP-D25 25 10 5 17 8 22 32
PMYP-D32 32 10 6 18 8 34 47
PMYP-D36 36 10 6 18 8 41 59
PMYP-D42 42 10 6 20 9 68 87
PMYP-D48 48 12 8 24 11.5 81 132
PMYP-D60 60 14 8 30 15 113 270
PMYP-D75 75 16 10 34 18 164 552

IMPORTANT NOTES:

Magnets rated holding force is when contacted directly against mild steel 3mm thick or greater.

The theoretical holding force described is for horizontal holding (based on a min 3mm thick steel surface). If you position the magnet to the vertical, you should divide the holding force amount by 3. This is due to the the influences of gravity and reduced friction.

AVOID:
Please note that magnetic strength will be weaker if the item you are attaching to is alloy, stainless steel, Colourbond steel, painted, oily, rusty or bumpy.

Also, if the ferrous item your attaching to is thin, the magnet will be weaker too, i.e. foil or sheet metal

If something in between the magnets and the surface your attaching to (i.e fabric), the pull strength also will be lesser.

Quantity: 1 piece of magnet only

Product Description:

Magnetic holders are used for attaching a variety of metal items.

The product consists of a small metal cup containing a neodymium rare earth magnet with female thread

Just attach the magnet to the metal surface

Organise your tools in a safe and secure manner

Ideal for holding kitchen utensils, gardening, mechanical and handyperson tools

Secures metal objects in place with easy removal or replacement

Easy to install, easy to use practical magnetic product

Product Specs:

Sku No. D1Ø M H h Holding force(kg) Weight (g)
PMYP-D10 10 5.5 3 12 5 2.2 3.5
PMYP-D12 12 6 3 13 5 3.2 5
PMYP-D16 16 6 4 13 5 5.5 8
PMYP-D20 20 8 4 15 7 9 17
PMYP-D25 25 10 5 17 8 22 32
PMYP-D32 32 10 6 18 8 34 47
PMYP-D36 36 10 6 18 8 41 59
PMYP-D42 42 10 6 20 9 68 87
PMYP-D48 48 12 8 24 11.5 81 132
PMYP-D60 60 14 8 30 15 113 270
PMYP-D75 75 16 10 34 18 164 552

IMPORTANT NOTES:

Magnets rated holding force is when contacted directly against mild steel 3mm thick or greater.

The theoretical holding force described is for horizontal holding (based on a min 3mm thick steel surface). If you position the magnet to the vertical, you should divide the holding force amount by 3. This is due to the the influences of gravity and reduced friction.

AVOID:
Please note that magnetic strength will be weaker if the item you are attaching to is alloy, stainless steel, Colourbond steel, painted, oily, rusty or bumpy.

Also, if the ferrous item your attaching to is thin, the magnet will be weaker too, i.e. foil or sheet metal

If something in between the magnets and the surface your attaching to (i.e fabric), the pull strength also will be lesser.
