Female Thread Neodymium Pot Magnet - Diameter 31mm x 6mm with Rubber Case
Same Day Dispatch
Order before 1pm to qualify for same day dispatch.
Magnetic Product Description:

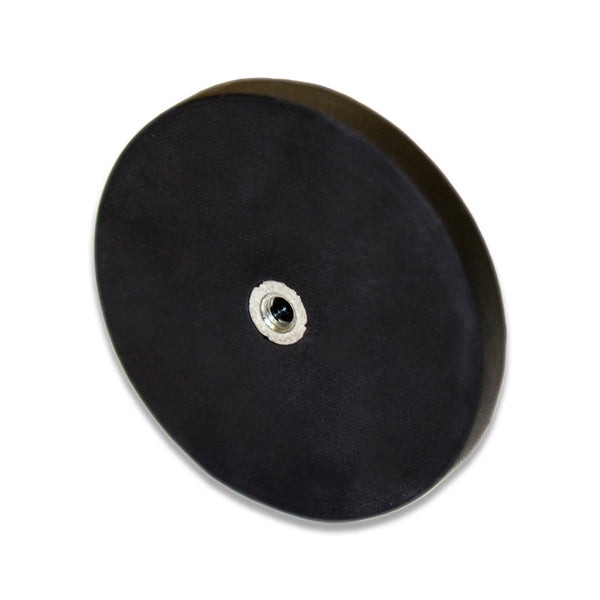

This rare earth female threaded pot magnet has a diameter of 31mm, a post height of 6mm, a base thickness of 6mm, a M4 female thread, and a Santoprene rubber coating that protects delicate surface areas. This female threaded magnet has a pull force of 6.5kg and a weight of 21.7 grams. It is identified by the AMF magnet part number RCND31F. Threaded hooks and eyelets are sold separately for this product, if required. Get in touch with us for pricing.
Uses for our Rare Earth female thread pot magnets:
These magnets are ideal for attaching equipment to vehicles or other circumstances where it is crucial that paint damage is avoided. A threaded bolt will insert into this female threaded, rubber-coated, multi-disc Holding magnet so equipment such as antennae, search and warning lights, signs or anything else that needs to be removed from a metal surface when not in use, can be quickly detached and later reapplied. The rubber coating protects the magnet from damage and also corrosion, while also protecting painted steel on things like vehicles, from abrasion damage and scratches. Converting private vehicles into mobile corporate advertising assets has never been easier. The Female attachment point will also accept a hook or eyelet attachment for an even easier way to hang ropes or cables around an industrial area or campsite. Several of these magnets bolted onto a three-dimensional promotional product or to decorative signage can make it suitable to be displayed on cars, trailers or food trucks in a non-permanent and non-penetrative way.
Typical Physical Properties
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
Production Flow Diagram
Demagnetization Curves
Surface Treatment
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Range and Tolerance
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Magnetic Properties
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
