Magnetic Separator Filter Bar D19mm x 181mm | M12 Male Thread | 10K Gauss

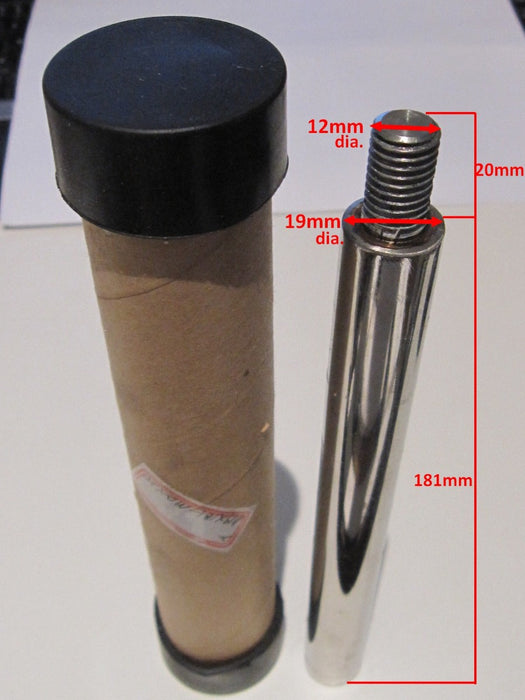

Magnetic Separator Filter Bar – Ø19mm x 181mm | M12 Male Thread | 10,000 Gauss

The Magnetic Separator Filter Bar – Ø19mm x 181mm | M12 Male Thread | 10,000 Gauss is a high-performance rare earth magnetic filter rod designed to efficiently capture and remove ferrous metal contamination from dry powders, granules, liquids, slurries, and other process materials. Manufactured using powerful neodymium rare earth magnets enclosed within a durable 304 stainless steel tube, this magnetic separator bar delivers a surface magnetic strength of 10,000 Gauss, providing outstanding separation performance across a wide range of industrial applications.

With a 19mm diameter, 181mm overall length, and an M12 male threaded mounting stud, this magnetic filter bar can be easily installed into magnetic grates, hopper magnets, chute magnets, drawer magnets, custom magnetic separation systems, and OEM equipment. The robust stainless steel construction provides excellent corrosion resistance and is suitable for demanding processing environments, including food manufacturing, plastics, recycling, pharmaceuticals, chemicals, mining, agriculture, and general industrial processing.

The concentrated magnetic field generated by the internal neodymium magnet assembly attracts and securely holds tramp iron, fine ferrous particles, machining swarf, and other magnetic contaminants before they can damage machinery, contaminate products, or reduce product quality. This helps minimise equipment wear, improve production efficiency, and support quality assurance programs such as HACCP.

Designed for continuous industrial operation, the Ø19mm x 181mm Magnetic Separator Filter Bar is ideal for both new magnetic separation systems and replacement installations where high-strength magnetic filtration is required.

Key Features

• Powerful 10,000 Gauss surface magnetic strength
• Premium neodymium rare earth magnetic core
• Durable 304 stainless steel housing
• Ø19mm diameter x 181mm overall length
• M12 male threaded mounting stud
• Captures fine ferrous particles and tramp metal
• Excellent corrosion and wear resistance
• Suitable for dry and wet processing applications
• Easy to install, remove, and clean
• Long-lasting permanent magnetic performance

Common Applications

• Magnetic grate systems
• Hopper magnets
• Drawer magnets
• Chute magnets
• Food processing equipment
• Plastic processing
• Pharmaceutical manufacturing
• Chemical production
• Recycling facilities
• Mining and mineral processing

Ideal For

• Food manufacturers
• Pharmaceutical manufacturers
• Plastic processors
• Chemical plants
• Recycling companies
• Mining operations
• Agricultural processors
• Packaging facilities
• OEM equipment manufacturers
• Industrial maintenance teams

Why Choose a 10,000 Gauss Magnetic Separator Filter Bar?

Magnetic separator filter bars are one of the most effective solutions for removing unwanted ferrous contamination from production lines before it reaches downstream equipment or finished products. By capturing iron filings, metal fragments, scale, and machining debris, they help protect expensive processing equipment while improving product purity and reducing downtime.

The 10,000 Gauss neodymium magnetic core provides exceptional magnetic strength, allowing the filter bar to capture both coarse and extremely fine ferrous contaminants that weaker magnetic systems may miss. This makes it particularly suitable for industries where product quality, equipment protection, and contamination control are critical.

The 304 stainless steel housing provides excellent corrosion resistance while protecting the internal magnet assembly from impact and wear. Combined with the M12 male threaded mount, this filter bar can be securely installed into existing magnetic separation systems or integrated into custom-engineered equipment with ease.

Technical Specifications

• Product Type: Magnetic Separator Filter Bar
• Magnet Material: Neodymium (Rare Earth)
• Housing Material: 304 Stainless Steel
• Shape: Cylindrical Magnetic Filter Rod
• Diameter: 19mm
• Overall Length: 181mm
• Surface Magnetic Strength: 10,000 Gauss
• Mounting Thread: M12 Male Thread
• Magnetisation: Axially Magnetised Internal Magnetic Assembly
• Corrosion Resistance: Excellent
• Reusable: Yes
• Application: Magnetic separation, ferrous contamination removal, product purification, equipment protection

Please Note

The stated 10,000 Gauss refers to the approximate magnetic field strength measured at the surface of the separator bar. Actual separation performance will vary depending on particle size, material flow rate, product density, operating temperature, installation configuration, and the distance between the contaminant and the magnetic surface.

This magnetic separator is designed to remove ferrous (magnetic) metals only. It will not attract or remove non-magnetic materials such as aluminium, copper, brass, stainless steel grades that are non-magnetic, or plastics.

For optimum performance, regularly inspect and clean the separator bar to remove accumulated metal particles. Routine maintenance helps maintain maximum magnetic efficiency and supports consistent product quality in continuous processing environments.
