Neodymium Cylinder Magnet – 50.8mm x 50.8mm | N50

Description

The Neodymium Cylinder Magnet – 50.8mm x 50.8mm | N50 is an exceptionally powerful rare earth magnet designed for demanding industrial, engineering, manufacturing and technical applications requiring high magnetic strength.

Manufactured from premium N50 grade Neodymium Iron Boron (NdFeB) magnetic material, this heavy-duty cylindrical magnet measures 50.8mm in diameter and 50.8mm in height, delivering an impressive 164kg rated pull force and 6,485 Gauss surface magnetic field strength.

Identified by AMF Magnetics Part Number C-D50.8H50.8-N50, this solid neodymium cylinder magnet provides substantial magnetic performance in a compact, symmetrical cylindrical form.

Neodymium magnets are among the strongest commercially available permanent magnets, making them an excellent choice for specialised applications where high magnetic force and efficient magnetic energy density are essential.

The substantial 50.8mm diameter and 50.8mm height provide a robust magnetic profile suitable for integration into custom magnetic assemblies, industrial machinery, engineering equipment and research applications.

With its high-performance N50 magnetic grade, this magnet offers exceptional magnetic energy density, making it suitable for projects requiring powerful permanent magnetic fields without the need for an external electrical power supply.

The 164kg rated pull force indicates extremely strong magnetic attraction under ideal direct-pull test conditions, while the 6,485 Gauss surface field strength demonstrates the concentrated magnetic field generated at the magnet's surface.

This combination of high magnetic strength, precise dimensions and permanent magnetic performance makes the magnet suitable for consideration in specialised engineering and industrial applications.

Potential uses include magnetic holding systems, custom magnetic fixtures, machinery development, magnetic separation assemblies, research equipment and technical testing.

Unlike electromagnets, this permanent neodymium magnet does not require electricity to maintain its magnetic field, making it a practical component for applications where continuous magnetic attraction is required.

Whether incorporated into a custom industrial assembly, magnetic research project or specialised engineering system, this 50.8mm N50 neodymium cylinder magnet provides outstanding magnetic performance for demanding applications.

Also known as a rare earth cylinder magnet, N50 cylindrical magnet, NdFeB cylinder magnet, heavy-duty neodymium magnet, industrial cylinder magnet, powerful permanent magnet or 2-inch neodymium cylinder magnet, this product is designed for users requiring exceptional magnetic strength and clearly defined technical specifications.

Important: This is an extremely powerful magnet capable of causing serious pinch and crush injuries. The 164kg pull-force rating is not a certified safe working load or lifting capacity.

Key Features

• Magnet Type: Neodymium Cylinder Magnet

• Magnetic Material: Neodymium Iron Boron (NdFeB)

• Magnetic Grade: N50

• Diameter: 50.8mm

• Height: 50.8mm

• Rated Pull Force: 164kg

• Surface Magnetic Field: 6,485 Gauss

• AMF Part Number: C-D50.8H50.8-N50

• High-performance rare earth magnetic material

• Exceptional magnetic strength relative to size

• Solid cylindrical design

• Powerful permanent magnetic field

• Suitable for specialised industrial applications

• Ideal for custom engineering and magnetic assemblies

• No external electrical power required

• Suitable for manufacturing and research applications

• High magnetic energy density

• Designed for applications requiring substantial magnetic attraction

Common Applications

This powerful N50 neodymium cylinder magnet may be suitable for:

• Industrial magnetic assemblies

• Mechanical engineering projects

• Manufacturing equipment

• Magnetic holding systems

• Custom magnetic fixtures

• Magnetic separation applications

• Machinery development

• Engineering prototypes

• Magnetic coupling systems

• Research and development

• Laboratory experiments

• Magnetic field testing

• Industrial automation projects

• Permanent magnet assemblies

• Equipment positioning

• Custom magnetic circuit development

• Technical education and demonstrations

• Specialised manufacturing processes

Important: Suitability depends on the magnetic circuit, operating environment, mechanical design and required holding performance. High-force applications should be assessed by a suitably qualified person.

High-Performance N50 Neodymium Magnetic Grade

The N50 magnetic grade identifies this product as a high-energy neodymium rare earth magnet.

Neodymium Iron Boron magnets are manufactured from an alloy containing neodymium, iron and boron, producing exceptionally strong permanent magnetic properties.

The N50 grade is commonly selected for applications requiring high magnetic energy density and powerful magnetic attraction within a relatively compact magnet.

Benefits of N50 Neodymium Magnets

Exceptional Magnetic Strength

Provides extremely strong magnetic attraction to compatible ferromagnetic materials.

High Magnetic Energy Density

Delivers substantial magnetic performance relative to the magnet's dimensions.

Permanent Magnetic Field

Maintains magnetic attraction without requiring electricity.

Versatile Engineering Applications

Suitable for incorporation into appropriately designed magnetic assemblies and technical equipment.

Compact Industrial Design

Offers high magnetic performance within a defined cylindrical form.

Exceptional 164kg Rated Pull Force

This neodymium cylinder magnet has a rated pull force of 164kg, making it an extremely powerful permanent magnet.

The rated pull force represents the magnetic attraction measured under specified ideal test conditions.

Magnetic pull force is typically determined by measuring the force required to separate a magnet from a suitable thick, clean, flat steel surface in a direct perpendicular pulling direction.

Factors Affecting Actual Pull Force

Actual holding performance may be reduced by:

• Thin steel surfaces

• Painted or coated materials

• Rust or corrosion

• Uneven contact surfaces

• Air gaps between the magnet and steel

• Curved contact surfaces

• Non-ferromagnetic materials

• Sideways or shear loading

• Mechanical vibration

• Elevated operating temperatures

• Poor magnetic contact

Important: The 164kg rating is not a guaranteed safe working load or certified lifting capacity.

This magnet must not be used for overhead lifting, suspended loads or safety-critical holding applications without an appropriately engineered and tested assembly.

Powerful 6,485 Gauss Surface Magnetic Field

This N50 neodymium cylinder magnet has a specified surface magnetic field strength of 6,485 Gauss.

Gauss is a unit used to measure magnetic flux density.

A surface field of 6,485 Gauss indicates a strong magnetic field at the specified measurement location.

Applications Benefiting from Strong Magnetic Fields

• Magnetic research

• Engineering experiments

• Custom magnetic assemblies

• Industrial equipment development

• Magnetic attraction systems

• Technical testing

• Magnetic circuit design

Surface Gauss and pull force measure different magnetic characteristics and should not be treated as interchangeable.

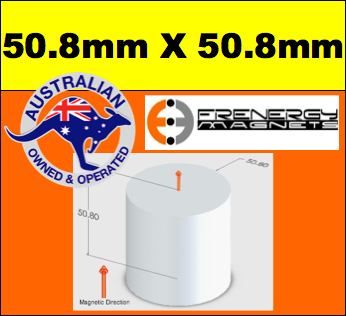

Solid 50.8mm x 50.8mm Cylindrical Design

The 50.8mm diameter x 50.8mm height provides a substantial cylindrical magnet with equal diameter and height.

This symmetrical cylindrical profile makes it suitable for specialised engineering and industrial applications requiring precise magnetic component dimensions.

Benefits of the Cylindrical Shape

• Defined geometry for custom assemblies

• Suitable for cylindrical housings

• Useful for magnetic circuit design

• Practical for research and engineering applications

• Can be incorporated into appropriately designed industrial equipment

• Provides substantial magnetic material volume

The precise dimensions assist engineers and manufacturers when specifying components for magnetic systems.

Industrial and Manufacturing Applications

High-strength neodymium cylinder magnets are commonly used in manufacturing environments where powerful magnetic attraction is required.

Potential applications include:

• Magnetic fixtures

• Custom holding assemblies

• Machinery development

• Magnetic positioning equipment

• Industrial automation

• Engineering prototypes

• Permanent magnet assemblies

When incorporating an extremely powerful permanent magnet into machinery, the assembly must be designed to control sudden magnetic attraction, impact and potential component movement.

Engineering and Research Applications

The N50 magnetic grade and specified surface field strength make this magnet suitable for consideration in specialised engineering and research projects.

Applications may include:

• Magnetic field experiments

• Research equipment

• Engineering prototypes

• Permanent magnet assemblies

• Magnetic force investigations

• Magnetic circuit development

• Laboratory testing

Users should confirm the required magnetic field geometry, magnetisation direction and operating conditions before selecting a magnet.

Permanent Magnetic Performance

Unlike electromagnets, this neodymium cylinder magnet produces a permanent magnetic field without requiring an electrical power supply.

Benefits of Permanent Magnets

• No external electrical power required

• Continuous magnetic attraction

• Suitable for passive magnetic systems

• Useful for custom engineering assemblies

• Practical for specialised industrial applications

Permanent magnets can retain magnetic properties for extended periods when used within their specified operating conditions.

Exposure to excessive heat, strong opposing magnetic fields or physical damage may reduce magnetic performance.

Compatible Magnetic Materials

This neodymium cylinder magnet strongly attracts suitable ferromagnetic materials.

Commonly Magnetic Materials

• Mild steel

• Carbon steel

• Iron

• Certain steel alloys

• Compatible ferromagnetic components

Non-Magnetic Materials

• Aluminium

• Copper

• Brass

• Plastic

• Timber

• Glass

• Non-magnetic stainless steel

Some stainless steel grades are magnetic, while others are not.

Magnetic attraction depends on the composition, thickness and condition of the material.

Technical Specifications

Compliance & Safety

Extremely Strong Magnetic Field: This magnet produces powerful magnetic attraction and must be handled with extreme care.

Severe Pinch and Crush Hazard: Fingers, hands and other body parts can become trapped between the magnet and ferromagnetic objects. Serious injuries may occur.

Brittle Material: Neodymium magnets are brittle and can chip, crack or shatter if allowed to collide with other magnets or steel objects.

Eye Protection: Appropriate eye protection should be worn when handling large, powerful neodymium magnets.

Medical Devices: Strong magnetic fields can interfere with pacemakers, implanted medical devices and other magnetically sensitive medical equipment. Maintain separation in accordance with the device manufacturer's guidance.

Electronic Equipment: Keep away from magnetic storage media, sensitive electronic instruments and equipment that may be affected by strong magnetic fields.

Children: Not suitable for children. Store securely and prevent unauthorised access.

Swallowing Hazard: Swallowed magnets can cause life-threatening internal injuries. Seek urgent medical attention if ingestion is suspected.

Handling: Use appropriate non-magnetic spacers, protective equipment and controlled handling procedures.

Temperature: Neodymium magnets can lose magnetic performance if exposed to temperatures exceeding their specified operating limits. The maximum operating temperature for this product has not been supplied.

Lifting and Safety-Critical Applications: The rated pull force is not a certified safe working load. Do not use as a lifting device or safety-critical attachment without suitable engineering assessment and testing.

Frequently Asked Questions

What are the dimensions of this neodymium cylinder magnet?

The magnet measures 50.8mm in diameter and 50.8mm in height.

What magnetic grade is this cylinder magnet?

This magnet is manufactured using N50 grade neodymium rare earth magnetic material.

What is the pull force of this magnet?

The magnet has a rated pull force of 164kg under specified ideal test conditions.

What is the surface Gauss rating?

The specified surface magnetic field strength is 6,485 Gauss.

What is the AMF Magnetics part number?

The part number is C-D50.8H50.8-N50.

Is this a permanent magnet?

Yes. Neodymium Iron Boron is a permanent magnetic material and does not require electricity to generate its magnetic field.

What does N50 mean?

N50 is a neodymium magnetic grade indicating a high maximum magnetic energy product. It is commonly selected for applications requiring strong magnetic performance relative to magnet size.

Can this magnet hold 164kg in any position?

No. The 164kg rating is based on ideal pull-test conditions and does not represent a guaranteed holding capacity in every application. Actual performance depends on surface conditions, contact area, loading direction and other factors.

Can this magnet be used for lifting?

The magnet should not be used for lifting or suspending loads without a properly engineered, tested and rated lifting assembly. The stated pull force is not a certified lifting capacity.

Will this magnet attract stainless steel?

Some stainless steel grades are magnetic, while others are not. Magnetic attraction depends on the specific stainless steel composition.

Is this magnet suitable for industrial applications?

Yes, it may be suitable for industrial and engineering applications where its magnetic strength, dimensions and operating characteristics meet the design requirements.

Is this magnet fragile?

Yes. Neodymium magnets are brittle and can crack or chip if subjected to impact, even though they produce extremely strong magnetic fields.

What is the maximum operating temperature?

The maximum operating temperature has not been specified for this product. Confirm the temperature rating before use in elevated-temperature environments.

What is the difference between pull force and Gauss?

Pull force measures the force required to separate a magnet from a test surface under specified conditions. Gauss measures magnetic flux density at a particular location.

Does this magnet require electricity?

No. It is a permanent rare earth magnet that generates its magnetic field without electrical power.
