Neodymium Cylinder Magnet 6mm x 10mm N50
Same Day Dispatch
Order before 1pm to qualify for same day dispatch.

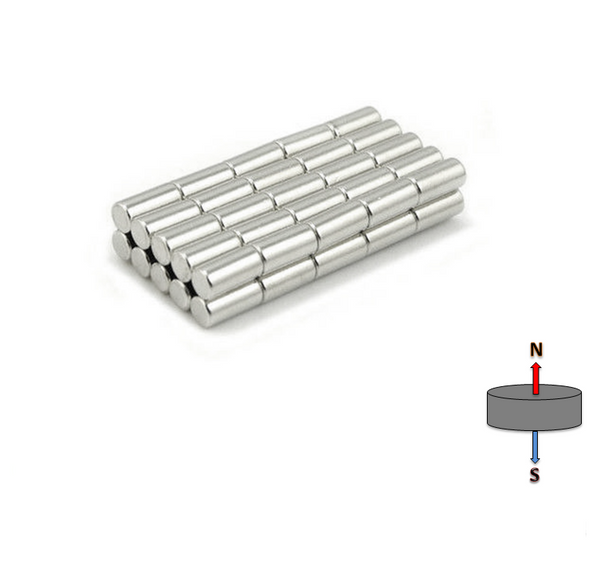

Neodymium Cylinder Magnet – 6mm x 10mm | N50
The Neodymium Cylinder Magnet – 6mm x 10mm | N50 is a high-performance rare earth permanent magnet designed for applications requiring exceptional magnetic strength in a compact cylindrical format. Manufactured from premium N50 grade neodymium iron boron (NdFeB), this precision magnet delivers outstanding magnetic performance while maintaining a small footprint, making it ideal for industrial, commercial, engineering, and OEM applications.
Measuring 6mm in diameter and 10mm in length, this cylinder magnet features a practical elongated profile that provides excellent magnetic performance while fitting neatly into drilled holes, tubular housings, automation equipment, sensor assemblies, and precision mechanical components. Its compact dimensions make it suitable for applications where installation space is limited but reliable holding force is essential.
The magnet is axially magnetised through its 10mm length, positioning the north and south poles on the two circular end faces. This magnetisation direction produces a concentrated magnetic field at each end of the cylinder, making it highly effective for magnetic holding, positioning, reed switch activation, magnetic couplings, and precision sensing applications.
Protected by a durable nickel-copper-nickel (Ni-Cu-Ni) triple-layer coating, the magnet offers excellent resistance to corrosion and everyday handling while maintaining a polished silver finish. Whether you're manufacturing machinery, designing automation systems, developing electronic products, or building custom engineering solutions, the 6mm x 10mm N50 Neodymium Cylinder Magnet delivers dependable long-term performance.
Key Features
- Premium N50 grade neodymium rare earth magnet
- Dimensions: 6mm diameter x 10mm length
- Compact cylindrical design
- Exceptional magnetic strength for its size
- Axially magnetised through the 10mm length
- North and south poles located on the circular end faces
- High magnetic energy density
- Durable nickel-copper-nickel (Ni-Cu-Ni) plated finish
- Precision manufactured for dimensional accuracy
- Suitable for industrial, commercial, and engineering applications
Common Applications
- Magnetic sensors
- Reed switch activation
- Industrial automation
- Robotics
- Magnetic couplings
- Electric motors
- Electronic devices
- Scientific instruments
- Product manufacturing
- Custom OEM assemblies
Ideal For
- Engineers
- OEM manufacturers
- Automation specialists
- Electronics designers
- Robotics developers
- Product designers
- Research laboratories
- Maintenance technicians
- Precision fabricators
- Prototype development
Why Choose an N50 Neodymium Cylinder Magnet?
The N50 grade is one of the highest standard grades of neodymium available, offering exceptional magnetic energy and outstanding holding performance in a compact package. This allows engineers and manufacturers to reduce the size of magnetic assemblies while maintaining powerful magnetic performance.
The 6mm x 10mm dimensions provide a well-balanced cylindrical profile that is easy to install into drilled holes, precision housings, and tubular components. Its shape is particularly suitable for locating systems, automation equipment, magnetic sensors, actuators, and applications requiring reliable alignment and consistent magnetic force.
Because the magnet is magnetised through its length, the magnetic field is concentrated on the circular end faces. This configuration provides excellent end-to-end attraction and dependable performance for magnetic holding, positioning, sensing, switching, and coupling applications.
Technical Specifications
- Product Type: Neodymium Cylinder Magnet
- Material: Neodymium Iron Boron (NdFeB)
- Magnet Grade: N50
- Shape: Cylinder
- Diameter: 6mm
- Length: 10mm
- Magnetisation: Axially magnetised through the 10mm length
- Pole Orientation: North and south poles on the circular end faces
- Coating: Nickel-Copper-Nickel (Ni-Cu-Ni)
- Finish: Polished silver nickel finish
- Magnet Type: Permanent Rare Earth Magnet
- Application: Holding, positioning, sensing, automation, electronics, manufacturing, and precision engineering
Please Note
Neodymium magnets are extremely powerful for their size and should always be handled carefully. This 6mm x 10mm N50 cylinder magnet can attract nearby steel objects or other magnets suddenly, creating pinch hazards and potentially causing the magnet to chip or crack if allowed to collide.
Actual holding force depends on the thickness, finish, and condition of the mating steel surface. Air gaps, paint, coatings, rust, uneven contact, elevated temperatures, and sideways or peeling forces can significantly reduce magnetic performance.
Neodymium magnets are hard but brittle. Do not drill, cut, machine, weld, or subject the magnet to heavy impacts, as this may damage the magnet and its protective coating.
Keep away from children, pacemakers, medical implants, magnetic storage media, and sensitive electronic equipment that may be affected by strong magnetic fields.
Typical Physical Properties
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
Production Flow Diagram
Demagnetization Curves
Surface Treatment
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Range and Tolerance
Magnets are readily available in Blocks, Discs, Cylinders & Rings. We specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Magnetic Properties
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
