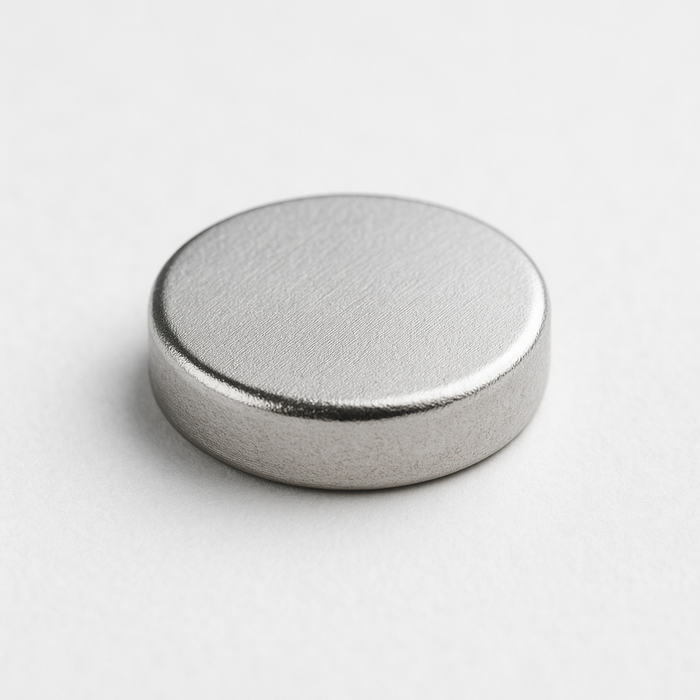

Neodymium Disc Magnet - 10mm x 2.5mm
Same Day Dispatch
Order before 1pm to qualify for same day dispatch.
Magnetic Product Description:
This Rare Earth Disc is small in size with a diameter of 10mm and height of 2.5mm. Although small, this magnet is extremely strong for its size. It has a magnetic pull force of 1.22kg and a magnetic flux reading of 2604 from an N35 grade. Rare Earth magnets are extremely strong permanent magnets, for other shapes and sizes see out Rare Earth Neodymium page.
Uses for our Rare Earth Disc Magnets:
Our strong Magnetic Discs can be used in countless ways. A few of these applications include metal separation, water conditioning, building generators, metal detectors, magnetic therapy and brochure closures.
This slimline Neodymium disc is easily concealed making it ideal for textile projects and arts and crafts. There are many ingenious ways our customers use this product to hold and control fabrics. Ideal in the fashion industry as an alternative to buttons and hooks for heavy-weight fabrics such as winter coats.
They can also be sewn into the hem of curtains, shade cloths or windbreakers. Rare Earth Magnetic Discs are particularly popular with model makers as a means of not only constructing but displaying their creations. The magnetic attachment makes it easy to take models down and put them back in place without hooks and wires.
Typical Physical Properties
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
Production Flow Diagram
Demagnetization Curves
Surface Treatment
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Range and Tolerance
Magnets are readily available in Blocks, Discs, Cylinders & Rings. We specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Magnetic Properties
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
