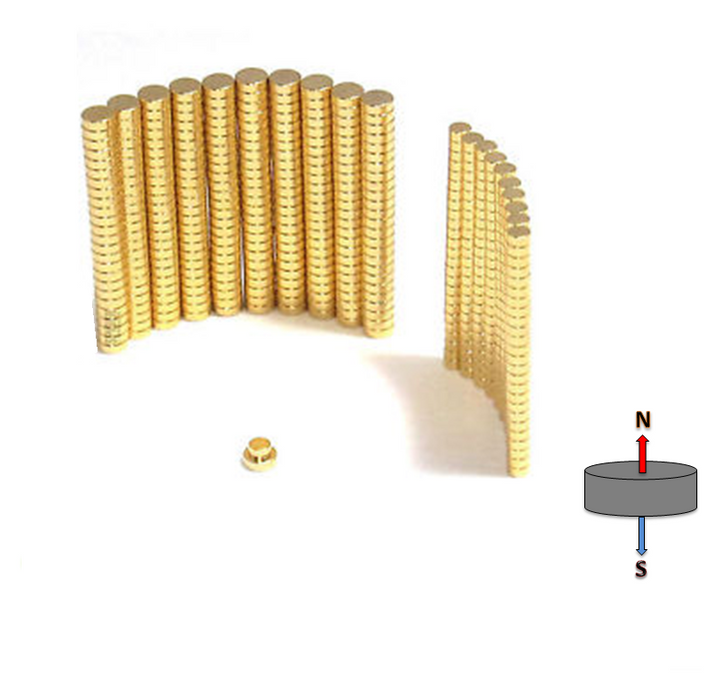

Neodymium Disc Magnet 3mm x 2mm N50 GOLD | Pack of 100pcs
Same Day Dispatch
Order before 1pm to qualify for same day dispatch.
Neodymium Disc Magnets - 100pcs
Diameter: 3mm
Height: 2mm
Grade: N50
Coating: Gold (au)
Magnetized Direction: Through height – 2mm
Theoretical Holding Force: ~ 0.254 kg
Surface Gauss: 5,796 gauss
Gold-coated magnets can still rust when exposed to moisture or environmental damage. To protect your gold magnet from corrosion, consider applying a sealant to extend the life of the coating. However, keep in mind that this may slightly reduce the magnet’s overall pull strength.
Typical Physical Properties
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
Production Flow Diagram
Demagnetization Curves
Surface Treatment
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Range and Tolerance
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Magnetic Properties
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
