Neodymium Ring Magnet OD50mm x H5mm | Hole 20mm N35
Same Day Dispatch
Order before 1pm to qualify for same day dispatch.
Neodymium Ring Magnets

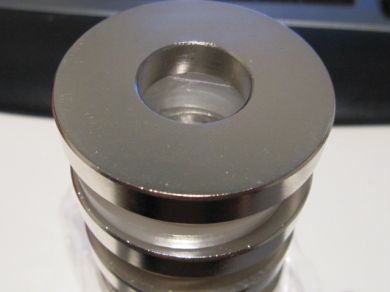

This rare earth ring has an outer diameter of 50mm, an inner diameter of 20mm and a height of 5mm. It has a grade of N35 and a pull force of 13.05kg when measured against up to 10mm of mild steel. This permanent magnet weighs 80 grams and has a maximum operating temperature of 80 degrees celsius. Its nickel coating gives it a contemporary appearance.
This strong neodymium ring magnet can be used as a permanent or temporary fixture. It is perfect for use as a retrieving tool as it can be easily placed in a small crevice. It can also be used to join fencing or keep gates and doors closed or open. This type of magnetic ring is ideal for many science or school projects.
Typical Physical Properties
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
Production Flow Diagram
Demagnetization Curves
Surface Treatment
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Range and Tolerance
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Magnetic Properties
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
