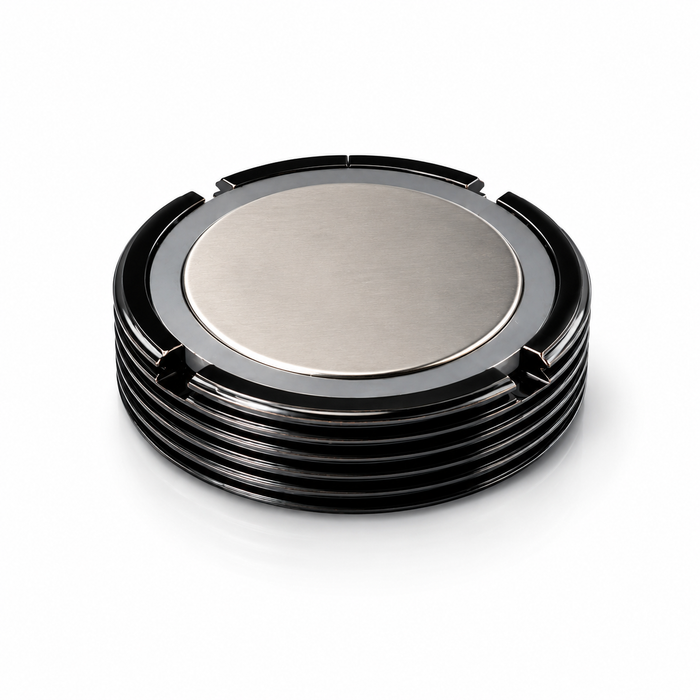

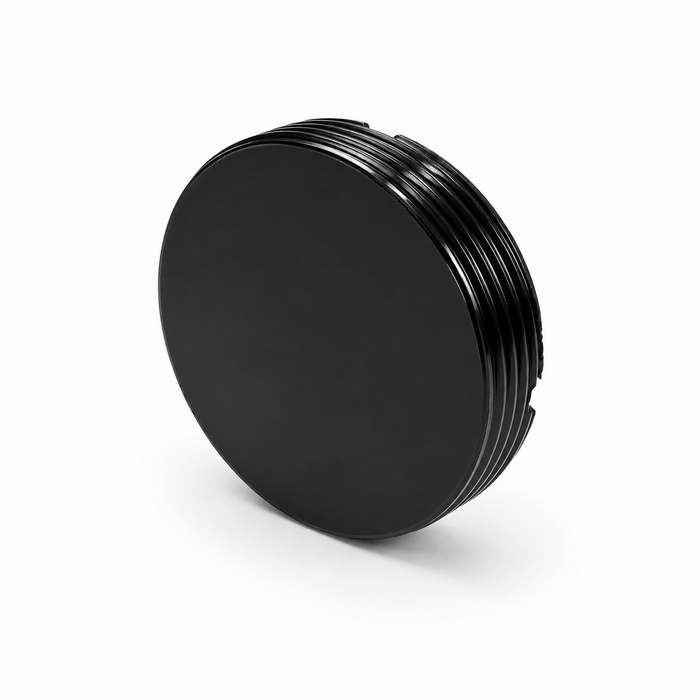

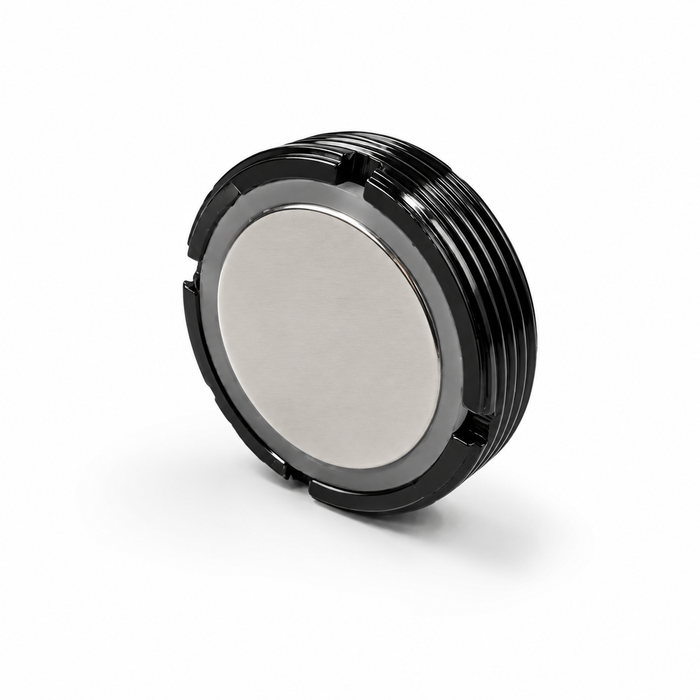

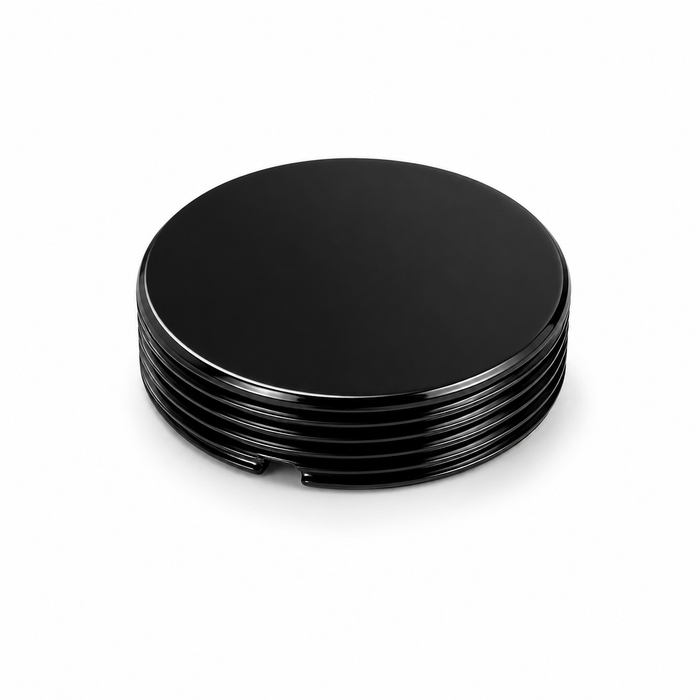

Neodymium Threaded Pot Magnet – D36mm x 8mm | Black Epoxy Coating
Same Day Dispatch
Order before 1pm to qualify for same day dispatch.
Neodymium Threaded Pot Magnet – D36mm x 8mm | Black Epoxy Coating
This premium Neodymium Threaded Pot Magnet features a compact 36mm diameter and slim 8mm profile, delivering impressive magnetic holding power in a low-profile design. Finished with a durable Black Epoxy coating, this rare earth pot magnet is designed for applications where corrosion resistance, reduced visibility, and a sleek professional appearance are important.
Built with a strong neodymium magnet encased inside a steel pot housing, this threaded mounting magnet offers a powerful 34kg pull force while weighing only 56 grams. The internal magnet features a protective NiCuNi coating, while the external black epoxy finish helps provide added durability in workshop, industrial, retail, marine, and commercial environments.
This external threaded pot magnet also includes four grooves around the perimeter of the pot housing, allowing easy installation and removal using a flat-head screwdriver — ideal for applications requiring secure fitting and maintenance access.
This threaded neodymium pot magnet is suitable for mounting systems, magnetic fixtures, displays, automation projects, cabinetry, engineering setups, and industrial holding applications.
Features & Benefits
Powerful rare earth neodymium threaded pot magnet
Durable Black Epoxy coating for enhanced corrosion resistance
Slim profile design with strong magnetic holding force
Impressive 34kg pull force
External threaded mounting design for secure attachment
Internal neodymium magnet with protective NiCuNi coating
Four perimeter grooves for easy installation/removal with a flat-head screwdriver
Ideal for industrial, workshop, marine, retail, and engineering applications
Common Uses
Magnetic mounting systems
Industrial holding and clamping
Machinery and automation projects
Retail displays and signage
Workshop and garage organisation
Cabinetry and hidden magnetic fixtures
Engineering and fabrication applications
Product Specifications
Product Type: Neodymium Threaded Pot Magnet
Diameter: 36mm
Total Height: 8mm
Coating (Housing): Black Epoxy
Internal Magnet Coating: NiCuNi
Pull Force: 34kg
Weight: 56g
Thread Type: External Thread
Installation Feature: x4 perimeter grooves for flat-head screwdriver installation
Important Information
Pull force ratings are based on ideal conditions using direct contact with a thick, clean mild steel surface. Actual holding strength may vary depending on surface material, thickness, paint coatings, direction of force, and environmental conditions. Neodymium magnets are brittle and should be handled carefully to avoid chipping or cracking.
Typical Physical Properties
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
Production Flow Diagram
Demagnetization Curves
Surface Treatment
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Range and Tolerance
Magnets are readily available in Blocks, Discs, Cylinders & Rings. We specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Magnetic Properties
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
