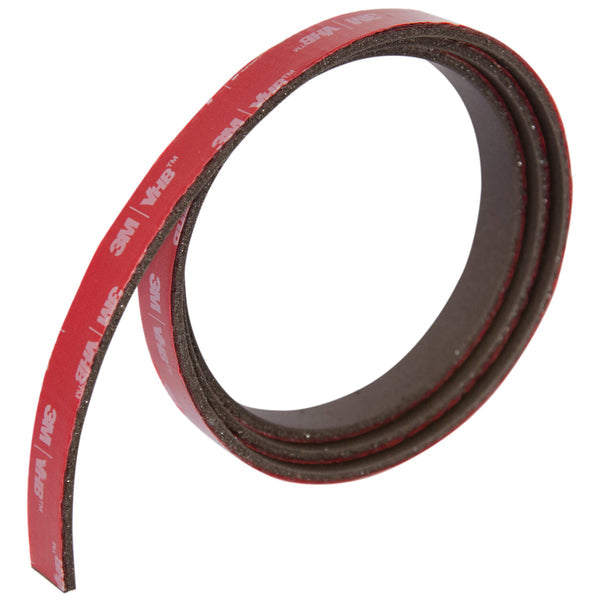

NeoFlex Neodymium Magnetic Strip - 1M x 12.5mm x 2.0mm | 3M Self Adhesive 4910 VHB
Same Day Dispatch
Order before 1pm to qualify for same day dispatch.
This Neodymium magnetic strip weighs 0.15kg and has a pull force of 650 g/cm². Style NeoFlex Magnetic Strip, dimensions of width 12.5mm, length 1000mm, height 2.0mm. It has a 3M self-adhesive backing.
This tape is the thickest and therefore strongest of the flexible tape products we stock. With the bonus of VHB-grade adhesive, it would be. We've all experienced the end result of trying to hang our favourite artwork, photos or sports memorabilia on the wall, with disastrous results – holes from nails or screws, mounted in the wrong place, and now needing a repair job. Magnetic strips can provide a mighty holding force for many of these tasks and has so many advantages over more common fixing methods.
Many of our Neodymium magnetic products, including magnetic strips, are perfect for attaching items to a wide variety of vertical surfaces and materials, cleanly and safely.
Typical Physical Properties
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
Magnetic Properties
Coating & Binder Selection
NB: Ranges are indicative for product category, please check individual products for specific values within that range.
Typical Physical Properties
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
Production Flow Diagram
Demagnetization Curves
Surface Treatment
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Range and Tolerance
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Magnetic Properties
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
