Square Grate Magnets – 310mm x 310mm | Min 10,000 Gauss
Same Day Dispatch
Order before 1pm to qualify for same day dispatch.
Please note: this product has a lead time of up to 3 weeks.

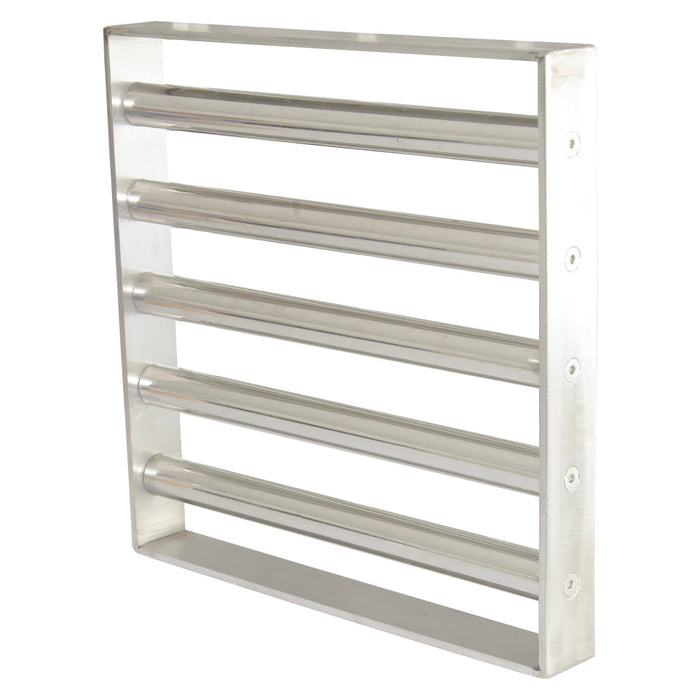

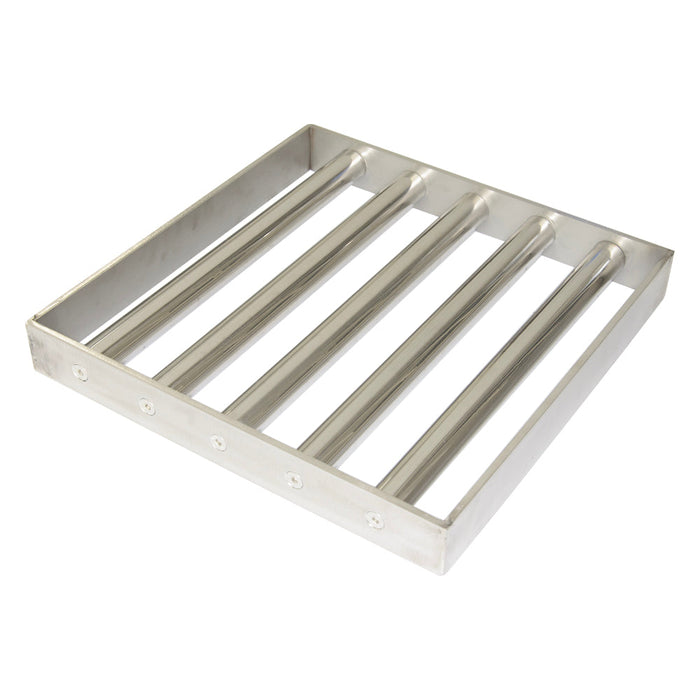

This 310mm x 310mm Square Grate Magnet, designed with high-performance Rare Earth Neodymium magnets, boasts a minimum strength of 10,000 Gauss. Engineered for precision magnetic separation, the grate consists of 5 magnet bars spaced 50mm apart, with 25mm between each bar. The durable frame is built from stainless steel 304, with dimensions of 310mm x 40mm x 5mm and secured using stainless steel screws.
Key Features:
- Magnetic Strength: Minimum 10,000 Gauss for superior ferrous particle capture.
- Structure: 5 magnet bars, spaced 50mm apart, allowing for effective separation of contaminants.
- Materials: Stainless steel 304 frame with sturdy 310mm x 40mm x 5mm rails.
- Durability: Built for industrial environments, with easy maintenance and cleaning.
Applications:
- Industries: Commonly used in food processing, plastics manufacturing, and recycling industries to ensure the removal of iron particles and other ferrous contaminants.
- Installation & Maintenance: Designed for easy installation and simple cleaning using a glove or compressed air to clear ferrous materials from the grate.
Grate magnets like these have evolved from the ceramic magnets used up until the 1990s. Today, modern Rare Earth Neodymium magnets provide up to six times the strength, ensuring maximum efficiency in removing foreign particles from your production line without disrupting workflow.
For custom-built solutions tailored to your specific needs, please contact our office for more information.
Uses for our Custom Built Grate Magnets:
Easy to install and easily replaced, our custom built grate magnets are easy to clean. Using a glove or compressed air, you can remove all ferrous material attached to the grid. Magnetic Separation equipment have been supplied to the Food, Chemical and Pharmaceutical industries since the 1940's. Up to the 1990's, most magnetic separators contained ceramic based magnets or ferrite magnets. Today, with the advent of newer magnetic materials such as Rare Earth Neodymium, increases of around 6 times that of the ceramic magnets can be obtained. Primarily, magnetic separation equipment work by attracting and removing foreign matter from your production, without interrupting it.
