Neodymium Magnetic Strip - 12.5mm x 1.5mm | 5 Metres | 3M Adhesive Tape
Same Day Dispatch
Order before 1pm to qualify for same day dispatch.
Strong Magnetic Strip Product Description:

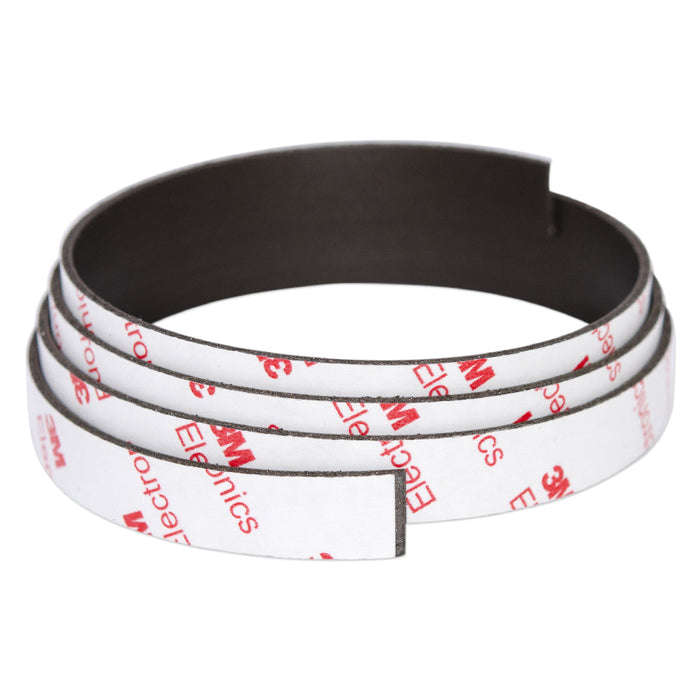

Neodymium tape is the strongest of all our flexible magnetic tapes, made from neodymium powder within a polymer matrix. This product has a 3M adhesive on one side for easy securing to a wide range of surfaces. Rare Earth Magnetic Strip has a width of 12.5mm, a thickness of 1.5mm and a length of 5 metres. Strong neodymium tape has a pull force of 450 g/cm². This product is identified by AMF Magnetics part number 59075/5M.
Click Here for instruction for installation
Please note: We don’t recommend this product for outdoor use, where it can be exposed to moisture, damp or wet surfaces, and/or weather, if slight rusting is of concern.
Uses for our Rare Earth Adhesive Magnetic Strips:
This product is ideal for use where Ferrite tapes lack enough magnetic strength. Typical uses are for securing and displaying banners, signage and heavy items (It has a pull force of 450 g/cm²). For heavier items, a glue* will need to be applied as the adhesive isn't strong enough for weighted objects.
Attaching items like artworks, photographs and sporting memorabilia to walls and other vertical surfaces often improve the amenity of a room. These Magnetic Strips allow for damage-free and hidden fixing solutions for attaching items to walls, for craft projects and more. Whether in the workplace, home or school, these decorative items can give inspiration to people who occupy these spaces.
Magnetic strips provide a mighty holding force and offer significant advantages over more common fixing methods. Magnets make it easier to reposition items, reducing the need to repair the damage caused by nails and screws. A metal backplate can allow these Neodymium Strips to adhere to different surfaces, without breaching or penetrating the walls painted surface. (Consider too, self adhesive magnetic sheeting that can be easily cut to suit).
Typical Physical Properties
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
Production Flow Diagram
Demagnetization Curves
Surface Treatment
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Range and Tolerance
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Magnetic Properties
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
