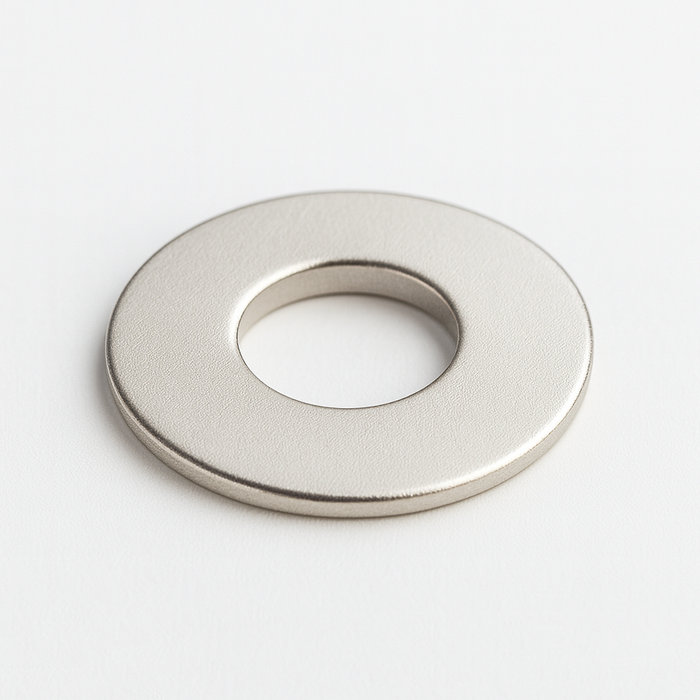

Neodymium Ring Magnet OD25mm x H2mm | Hole 10mm N38
Same Day Dispatch
Order before 1pm to qualify for same day dispatch.
Neodymium Ring Magnet – OD25mm x ID10mm x H2mm | N38 Rare Earth Magnet
Product Description
The Frenergy Magnets Neodymium Ring Magnet – 25mm Outer Diameter x 10mm Inner Diameter x 2mm Height | N38 is a thin, high-performance Rare Earth magnet designed for applications requiring magnetic attraction combined with a convenient central mounting hole.
Manufactured from N38 grade Neodymium Iron Boron (NdFeB), this permanent ring magnet features a 25mm outer diameter, 10mm central hole and slim 2mm thickness.
Its annular design makes it suitable for engineering projects, magnetic assemblies, product manufacturing, positioning systems, craft applications, prototypes and custom mounting arrangements.
Unlike a solid disc magnet, the central opening allows the ring to be positioned around a shaft, pin, guide or other compatible component. It can also accommodate suitable mechanical fasteners, provided the installation is designed to avoid damaging the magnet.
The 2mm low-profile construction makes this magnet particularly useful where installation depth is limited, while the N38 Neodymium material provides high magnetic energy density in a compact format.
Whether you're developing a custom magnetic assembly, creating a mechanical prototype or manufacturing a specialised product, the Frenergy Magnets 25mm x 10mm x 2mm N38 Neodymium Ring Magnet offers a versatile solution for applications requiring a thin, circular permanent magnet with a central opening.
High-Performance N38 Neodymium Material
This ring magnet is manufactured from N38 grade Neodymium, a powerful Rare Earth magnetic material.
The N38 designation identifies a maximum energy product typically ranging from approximately 36–39 MGOe.
N38 Neodymium provides high magnetic energy density compared with conventional Ferrite magnets, making it suitable for applications where compact dimensions and strong magnetic performance are important.
The magnet generates a permanent magnetic field without requiring batteries or electricity.
Actual magnetic performance depends on the magnetisation direction, contact area, receiving material, air gaps and operating conditions.
The specific pull-force rating and surface Gauss reading for this product have not been supplied.
25mm Outer Diameter
The 25mm outer diameter provides a compact circular footprint suitable for a variety of magnetic assemblies.
This size is useful for applications requiring a ring-shaped magnetic component that can be integrated into custom housings, fixtures or product designs.
The circular geometry also makes it practical for assemblies involving rotational positioning or components arranged around a central axis.
10mm Central Hole
The 10mm inner diameter provides a central opening that distinguishes this magnet from a conventional solid Neodymium disc magnet.
The hole can accommodate compatible shafts, pins, guides or mounting components.
Potential applications include:
-
Magnetic Assemblies
-
Engineering Prototypes
-
Positioning Systems
-
Custom Mechanical Fixtures
-
Product Manufacturing
-
Magnetic Closures
-
Craft Projects
-
Educational Demonstrations
-
Sensor-Related Prototypes
-
DIY Magnetic Projects
The central hole is not threaded or countersunk unless specifically stated.
Because Neodymium is brittle, fasteners should not be tightened directly against the magnet without suitable protection and mechanical support.
Ultra-Thin 2mm Profile
With a thickness of just 2mm, this ring magnet is suitable for low-profile assemblies and applications with limited installation depth.
The slim design allows it to be incorporated into shallow recesses, thin housings and compact products.
Its reduced thickness is particularly useful where a thicker ring magnet would interfere with surrounding components.
Suitable for Magnetic Mounting and Positioning
The ring-shaped design can be incorporated into magnetic mounting systems and positioning assemblies.
The central hole provides an opportunity for mechanical alignment, while the magnetic material supplies permanent magnetic attraction.
For applications involving shafts, rotating components or magnetic sensing, the magnetisation direction must be confirmed before use.
Ideal for Custom Magnetic Assemblies
The 25mm OD x 10mm ID x 2mm N38 Neodymium Ring Magnet can be integrated into custom engineering and manufacturing projects.
It may be used in assemblies requiring a central opening for positioning or component clearance.
The magnet should be retained using a suitable housing, mechanical support or compatible adhesive.
Versatile for Craft and DIY Projects
The compact dimensions make this ring magnet useful for specialised craft projects and custom magnetic products.
It can be incorporated into decorative assemblies, prototypes and lightweight magnetic fastening systems.
Also known as a 25mm Neodymium ring magnet, 25x10x2mm Rare Earth magnet, N38 ring magnet, thin Neodymium washer magnet, annular magnet or circular magnet with a 10mm hole, this product offers a practical magnetic solution for technical and creative applications.
Key Features
-
25mm Outer Diameter: Compact circular design.
-
10mm Inner Diameter: Central hole for compatible mounting and alignment arrangements.
-
2mm Thickness: Ultra-thin profile for shallow assemblies.
-
N38 Magnetic Grade: High-performance Neodymium Rare Earth material.
-
Neodymium Iron Boron (NdFeB): Strong permanent magnetic material.
-
Ring / Annular Shape: Suitable for applications requiring a central opening.
-
High Magnetic Energy Density: Strong magnetic potential relative to its size.
-
Permanent Magnetic Field: No electrical power required.
-
Versatile Mounting Options: Can be incorporated into custom housings and fixtures.
-
Low-Profile Design: Ideal for applications with limited installation depth.
-
Engineering Applications: Suitable for prototypes and magnetic assemblies.
-
Customisable Integration: Useful for product manufacturing and DIY projects.
Common Applications
Engineering and Mechanical Assemblies
Incorporate into custom components requiring a ring-shaped permanent magnet.
Magnetic Positioning Systems
Use in appropriately designed systems where magnetic attraction and central alignment are required.
Product Manufacturing
Integrate into manufactured products requiring a compact annular magnetic component.
Magnetic Closures
Create specialised magnetic fastening systems where a central opening is beneficial.
Shaft and Pin Assemblies
Position around compatible shafts, pins or guides, subject to appropriate dimensional clearances.
Sensor-Related Prototypes
Evaluate magnetic field interactions in compatible sensing and positioning systems.
Magnetic Fixtures
Incorporate into custom magnetic holding and positioning arrangements.
Craft and DIY Projects
Use in specialised magnetic decorations, handmade products and custom assemblies.
Educational Demonstrations
Demonstrate magnetic attraction, repulsion and magnetic field behaviour under appropriate supervision.
Research and Prototyping
Evaluate magnetic field interactions and custom magnetic assembly concepts.
Why Choose an N38 Neodymium Ring Magnet?
Strong Magnetic Energy Density
N38 Neodymium provides high magnetic energy density in a compact format.
Convenient Central Hole
The 10mm opening allows integration around compatible components.
Ultra-Thin Construction
The 2mm thickness is ideal for applications requiring minimal installation depth.
Compact 25mm Outer Diameter
Suitable for custom magnetic assemblies and precision applications.
Permanent Magnetic Performance
Generates magnetic attraction without batteries or electricity.
Versatile Engineering Applications
Useful for custom fixtures, product development and magnetic positioning systems.
Flexible Integration Options
Can be incorporated into suitable housings, recesses and mechanical assemblies.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Frenergy Magnets |
| Product Name | Neodymium Ring Magnet – OD25mm x ID10mm x H2mm |
| Magnet Type | Permanent Rare Earth Magnet |
| Magnetic Material | Neodymium Iron Boron (NdFeB) |
| Shape | Ring / Annular |
| Outer Diameter (OD) | 25mm |
| Inner Diameter (ID) | 10mm |
| Hole Diameter | 10mm |
| Height / Thickness | 2mm |
| Magnetic Grade | N38 |
| Maximum Energy Product | Typically 36–39 MGOe |
| Hole Type | Straight Central Opening |
| Magnetisation Direction | Not Specified |
| Coating / Plating | Not Specified |
| Pull Force | Not Specified |
| Surface Gauss | Not Specified |
| Maximum Operating Temperature | Not Specified |
| Weight | Not Specified |
| Primary Applications | Engineering, Magnetic Assemblies, Positioning and Custom Mounting |
Dimensions and N38 magnetic grade are confirmed. Coating, magnetisation direction, pull force, surface Gauss, weight and maximum operating temperature have not been specified.
What Is an N38 Neodymium Ring Magnet?
An N38 Neodymium ring magnet is a permanent Rare Earth magnet manufactured from Neodymium Iron Boron magnetic material.
The magnet features a circular outer shape with a central opening, forming an annular or washer-like geometry.
The N38 designation identifies the material's maximum energy product, indicating its magnetic energy density.
Neodymium magnets provide substantially higher magnetic energy density than conventional Ferrite magnets, making them useful for compact magnetic applications.
Ring magnets are particularly useful where a central opening is required for mounting, alignment or component clearance.
How Does a Neodymium Ring Magnet Work?
A Neodymium ring magnet generates a permanent magnetic field.
When positioned near suitable ferromagnetic materials, such as mild steel or iron, the magnet produces an attractive force.
Two ring magnets can also attract or repel one another depending on their magnetic pole orientation.
The ring shape allows magnetic material to surround a central opening.
The magnetic field distribution depends on the magnetisation direction, which has not been specified for this product.
For applications requiring a particular magnetic field orientation, the magnetisation direction should be confirmed before installation.
Neodymium Ring Magnets vs Neodymium Disc Magnets
| Feature | Neodymium Ring Magnet | Neodymium Disc Magnet |
|---|---|---|
| Shape | Circular with Central Hole | Solid Circular Disc |
| Central Opening | Yes | No |
| Mounting Options | Can Accommodate Compatible Shafts or Pins | Usually Requires a Housing, Adhesive or Other Retention |
| Magnetic Contact Area | Reduced by Central Hole | Full Circular Face |
| Typical Applications | Mechanical Assemblies, Positioning, Custom Mounting | Magnetic Closures, Holding, Crafts |
| Permanent Magnetic Material | Yes | Yes |
| Electrical Power Required | No | No |
The most suitable magnet shape depends on the mounting arrangement, required magnetic field and available installation space.
How to Install a Neodymium Ring Magnet
-
Confirm the Dimensions: Ensure the 25mm outer diameter, 10mm hole and 2mm thickness suit the intended assembly.
-
Check the Mounting Arrangement: Verify that any shaft, pin or fastener is compatible with the central opening.
-
Identify the Magnetic Poles: Confirm the magnetisation direction before installation.
-
Test Magnetic Performance: Evaluate attraction to the intended steel surface or mating magnet.
-
Prepare the Mounting Surface: Clean the receiving material and remove contaminants.
-
Select a Suitable Mounting Method: Use a properly designed housing, mechanical retaining system or compatible adhesive.
-
Avoid Excessive Pressure: Do not overtighten fasteners or apply concentrated force directly to the magnet.
-
Position Carefully: Prevent the magnet from snapping unexpectedly towards steel or other magnets.
-
Secure the Magnet: Ensure the installation prevents unintended movement.
-
Test the Assembly: Verify performance under realistic operating conditions.
Factors Affecting Magnetic Holding Performance
Magnetisation Direction
The orientation of the magnetic poles determines how the ring magnet interacts with other magnets and ferromagnetic materials.
Steel Thickness
Thicker ferromagnetic steel generally provides stronger magnetic attraction than thin sheet metal.
Contact Area
The central hole reduces the available face area compared with a solid disc of the same outer diameter.
Air Gaps
Even small gaps between the magnet and receiving surface can significantly reduce magnetic attraction.
Surface Coatings
Paint, plastic, adhesive and other non-magnetic layers create separation and reduce holding force.
Load Direction
Sliding and sideways forces may cause detachment more easily than direct separation.
Temperature
Excessive heat can reduce magnetic performance and may cause permanent demagnetisation.
Mechanical Damage
Cracks, chips and other damage can affect magnetic performance and structural integrity.
Suitable Magnetic Materials
This magnet can attract compatible ferromagnetic materials, including:
-
Mild Steel
-
Iron
-
Carbon Steel
-
Ferromagnetic Steel Components
-
Certain Magnetic Stainless Steel Grades
-
Suitable Steel Plates and Housings
Non-Magnetic Materials
This magnet will not attach directly to non-ferromagnetic materials such as:
-
Aluminium
-
Copper
-
Brass
-
Timber
-
Glass
-
Plastic
-
Acrylic
-
Most Austenitic Stainless Steel Grades
For non-magnetic surfaces, a suitable steel receiving plate, mating magnet or mechanical mounting arrangement may be required.
Care and Maintenance
-
Handle carefully to avoid cracking or chipping.
-
Prevent magnets from colliding forcefully.
-
Avoid dropping onto hard surfaces.
-
Store in a clean, dry environment.
-
Protect against moisture where coating suitability is unknown.
-
Avoid exposure to excessive heat.
-
Keep away from sensitive electronic equipment.
-
Inspect for damage before installation.
-
Avoid excessive mechanical pressure around the central hole.
-
Store securely away from young children and pets.
Safety Information
Strong Magnetic Attraction: N38 Neodymium ring magnets can attract steel objects and other magnets unexpectedly.
Pinch Hazard: Keep fingers clear when bringing magnets close together.
Brittle Material: Neodymium magnets can chip, crack or shatter under impact or excessive mechanical pressure.
Central Hole: Do not overtighten screws, bolts or other fasteners directly against the magnet.
Small Magnet Hazard: Keep away from young children and pets. Swallowed magnets can cause severe internal injuries.
Medical Devices: Keep away from pacemakers, implanted defibrillators and other magnetically sensitive medical devices.
Electronic Equipment: Magnetic fields may interfere with magnetic sensors, storage media and sensitive equipment.
Temperature Limitations: The maximum operating temperature for this product has not been confirmed. Avoid exposure to excessive heat.
Safety-Critical Applications: Do not rely on this magnet for structural support, overhead holding or applications where detachment could cause injury.
Frequently Asked Questions
What size is this Neodymium ring magnet?
It has a 25mm outer diameter, 10mm inner diameter and 2mm thickness.
What is the diameter of the central hole?
The central hole measures 10mm in diameter.
What magnetic grade is it?
The magnet is manufactured from N38 grade Neodymium.
What does N38 mean?
N38 identifies a Neodymium magnetic material with a typical maximum energy product of approximately 36–39 MGOe.
Is this a strong magnet?
Yes. N38 Neodymium provides high magnetic energy density relative to its size. Actual holding force depends on the magnet's dimensions, magnetisation direction and contact conditions.
What is the pull force?
The pull-force rating has not been supplied.
What is the surface Gauss reading?
The surface Gauss value has not been specified.
Is this magnet suitable for engineering applications?
Yes. It can be incorporated into suitable mechanical assemblies, custom fixtures and engineering prototypes.
Can a bolt pass through the central hole?
A suitably sized bolt or fastener may pass through the 10mm opening, provided adequate clearance and appropriate mechanical protection are used.
Is the hole countersunk?
No countersink has been specified. The product is described as having a 10mm central hole.
Can it be used around a shaft?
Yes, provided the shaft dimensions and installation arrangement are compatible.
Can it be glued into a housing?
Yes, provided a suitable adhesive is selected for the magnet's coating and receiving material.
Is it magnetised through the 2mm thickness?
The magnetisation direction has not been specified.
What coating does it have?
The coating has not been specified.
Can two ring magnets attract each other?
Yes, when opposite magnetic poles face each other.
Can it attach to stainless steel?
Only stainless steel grades that are sufficiently ferromagnetic.
Can it attach to aluminium?
No. Aluminium is not ferromagnetic.
Can it be used outdoors?
Outdoor suitability depends on the protective coating and environmental conditions. These specifications have not been confirmed.
Does it require electricity?
No. It is a permanent magnet.
Can it break if dropped?
Yes. Neodymium magnets are brittle and can chip or fracture under impact.
Related Products
-
Neodymium Ring Magnets
-
N38 Rare Earth Magnets
-
Thin Neodymium Ring Magnets
-
Neodymium Disc Magnets
-
Neodymium Block Magnets
-
Magnetic Assembly Components
-
Rare Earth Washer Magnets
-
Magnetic Positioning Magnets
-
Industrial Permanent Magnets
-
Engineering Magnets
Please Note
The Frenergy Magnets Neodymium Ring Magnet – OD25mm x ID10mm x H2mm | N38 is a thin, high-performance Rare Earth magnet designed for engineering projects, magnetic assemblies, positioning systems and custom mounting applications.
The magnet measures 25mm in outer diameter, features a 10mm central hole and has a 2mm thickness. It is manufactured from N38 grade Neodymium.
The coating, magnetisation direction, pull force, surface Gauss, weight and maximum operating temperature have not been specified.
Actual magnetic performance depends on the receiving material, contact area, air gaps, pole orientation, load direction and operating conditions.
Important: Neodymium magnets are strong and brittle. Avoid excessive pressure around the central hole, handle carefully and independently test suitability before use in demanding or safety-critical applications.
Returns Policy
If you are not entirely satisfied with your purchase, we're here to help.
We have a 30 Day Returns policy at Frenergy Magnets. You may return your item within 30 days of receiving it to receive a refund.
The product/s must be unused and in the same condition you received them in. Please contact us at info@frenergy.com.au to initiate the returns process.
The buyer is responsible for the cost of returning the order.
