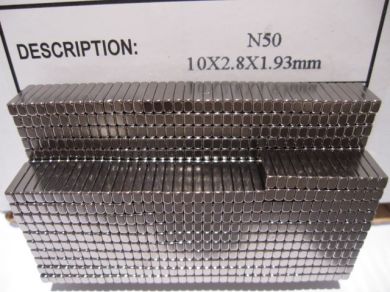

Neodymium Block Magnet 10x2.8x1.9mm N50

Product code: B-W2.8H1.9L10-N50

$2.42 each
for 1 to 9 items
$2.01buy 10 to 99 itemsand save 16%
$1.67buy 100+ itemsand save 30%
Total
$2.42

Prices are GST Incl.

Volume pricing available on request

Australia's Leading Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

Neodymium Block Magnet 10x2.8x1.9mm N50

Product Code B-W2.8H1.9L10-N50
Pull Force* 0.6800kg
Weight 0.004kg
Gauss 4537
Grade N50
Coating Nickel (NiCuNi)
Direction of Magnetisation Through Height
Dimensions Width:2.80mm, Length:10.00mm, Height:1.90mm
*Measured against up to 10mm mild steel.

Neodymium Block Magnets

This rare earth magnetic block has a length of 10mm, width of 2.8mm and a height of 1.9mm. It weighs 4 grams and with a Grade of N50, this neo block magnet has a pull force of 0.680 kg. It has a black nickel coating, which gives it a clean, contemporary appearance. This rectangular magnet has a maximum operating temperature of 80 degrees celsius.

These powerful block magnets are popular with engineers and design production industries. They are used by lighting suppliers and car manufacturers. Block magnets such as these are also very popular with DIY hobbyists and used as a permanent or non permanent joining mechanism.

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
