Neodymium Block Magnet 6x6x3mm N48
Product code: B-W6H3L6-N48
Australia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Neodymium Block Magnet 6x6x3mm N48
Neodymium Block Magnets

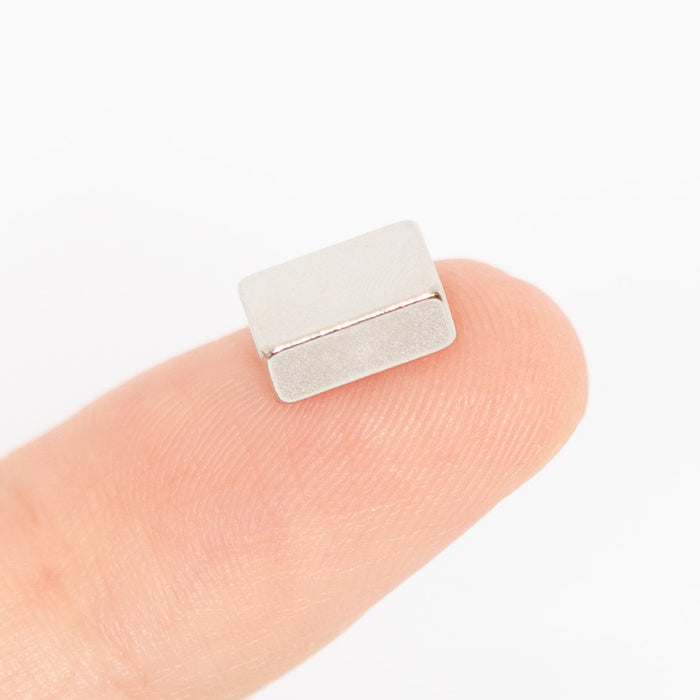

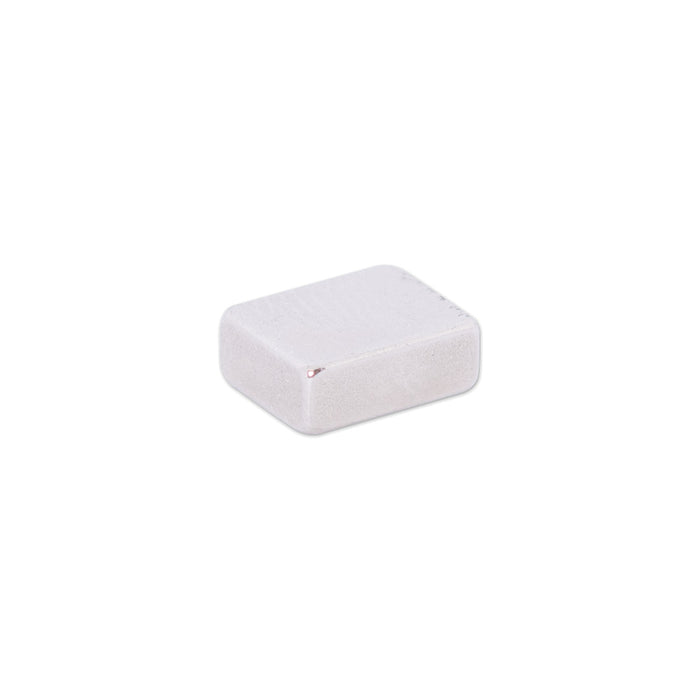

This neodymium rare earth magnet block has a length of 6mm, width of 6mm and a height of 3mm. It has a strong pull force of 1.38 kilos and a maximum operating temperature of 80 degrees celsius. These rare earth blocks are nickel coated which will provide protection from corrosion when the magnet is in outdoor conditions.
Permanent magnets with this shape are very useful and prove to be reliable and durable. Their slimline proportions make it easy to conceal them inside a mechanism where they may be required. This type of magnetic product is very popular with creative craft projects and hobbyists. Among other things, they can be used as a joining tool for parts or as a closure device. Many creative commercial designs also require rare earth neodymium magnets.
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
